Neutral - B205 | Overruning Clutches | 23.62 × 52 × 25 mm

Details

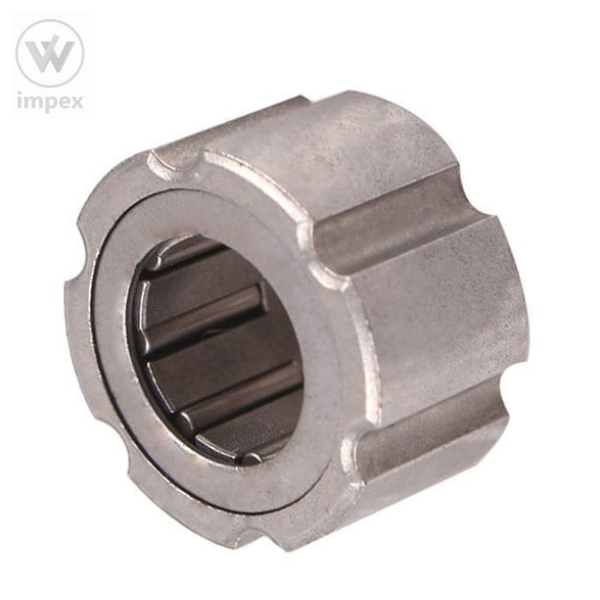

Neutral B205 is an overruning clutches with inner diameter 23.62 mm, outer diameter 52 mm and width 25 mm. Additional specifications include bore type CYLINDRICAL, cage YES and lubrication STANDARD.

Neutral B205 is listed in the Overrunning Clutches range under Clutch and Brakes with VW Impex product serial 177000. Recorded specification details include size 23.62 × 52 × 25 mm, cylindrical bore, cage available, standard lubrication and weight 0.45 kg. This mounted bearing or housing unit provides a mounted support point for a rotating shaft and is normally reviewed for conveyors, fans, processing machinery and general rotating equipment. Before ordering, confirm shaft size, bolt pattern and housing style against the equipment manual, existing part marking or technical drawing. Catalogue note: B205 is a sprag type freewheel non-bearing supported and non-inner race clutch. Nominal diameter is a standard ball bearing dimension. Bearings are required to support axial and radial loads. Units are delivered grease lubricated. The outer race is keyed to the housing, because sprag contact to shaft directly, the shaft must have the hardness HRC 56 - 60 and tolerance h7.

Specifications
