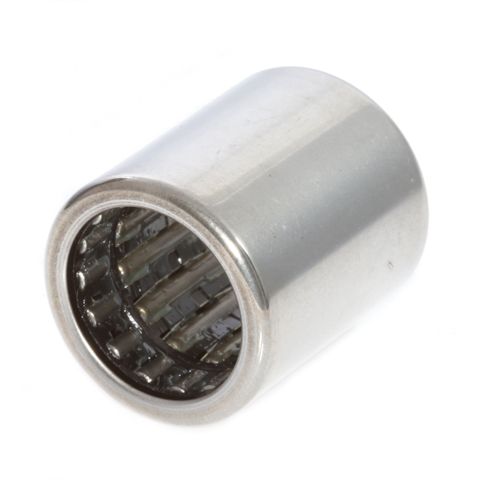

Neutral - OWC406GXRZ | One Way Needle Bearing | 4 × 8 × 6 mm

Details

Neutral OWC406GXRZ is an one way needle bearing with inner diameter 4 mm, outer diameter 8 mm and width 6 mm. Additional specifications include bore type CYLINDRICAL, cage STANDARD and lubrication YES.

This record lists Neutral OWC406GXRZ as part of the One Way Needle Bearing range under Clutch and Brakes. The product record shows size 4 × 8 × 6 mm, cylindrical bore, standard cage and lubrication available. Compare this record with applications such as industrial assemblies needing a low-section radial bearing arrangement, focusing on shaft diameter, housing bore and width. Final suitability should be checked from the machine drawing or existing component. Catalogue note: The outer ring of OWC one-way clutch is made by sintered metal , and the spring is made by stainless steel . As the basic part of the clutch does not use resin , it is hard to be affected by external environment. Two standard : clockwise (R type) and anticlockwise (L type). The structure is all metal ,which gives full play to the excellent heat resistant characteristic.

Specifications
