NADELLA - HFL3530 | Freewheel Clutches | 35 × 42 × 30 mm

Details

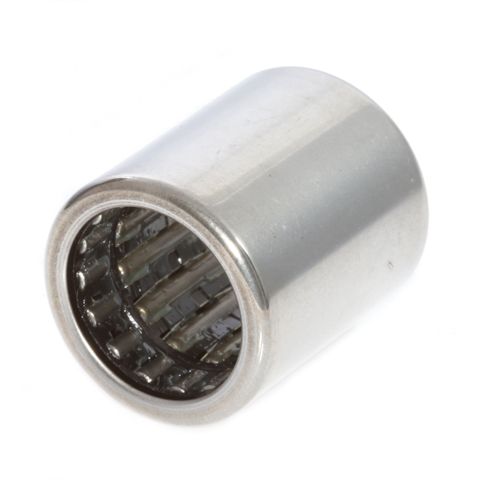

NADELLA HFL3530 is a freewheel clutches with inner diameter 35 mm, outer diameter 42 mm and width 30 mm. Additional specifications include bore type CYLINDRICAL and lubrication STANDARD.

Product serial 1207472 identifies NADELLA HFL3530 in the catalogue record. It is classified as a needle roller bearing within the Freewheel Clutches range under Clutch and Brakes. Available recorded details are size 35 × 42 × 30 mm, cylindrical bore, standard lubrication and weight 0.05 kg. The item is used for industrial assemblies needing a low-section radial bearing arrangement when the listed specification matches the application. Confirm all fitment details before purchase. Catalogue note: This bearing allows rotation in one direction while locking the bearing in the opposite direction to transmit torque. Its unique design and functionality make it indispensable in various mechanical systems. Features are : Compact Design: This bearing saves space and reduces the overall weight of the machinery or system. Unidirectional Rotation: It allows shafts to rotate freely in one direction while locking and preventing reverse rotation. Torque Transmission: Efficiently transmit torque when engaged, providing.

Specifications
