INA - KNO20-B | Linear Ball Bearing Bushes & Shaft Guides | 20 × 32 × 45 mm

INA KNO20-B, product serial 15820, is part of the Linear Ball Bearing Bushes & Shaft Guides range under Linear Bearings. The listing records 20 × 32 × 45 mm dimensions. Key details include cylindrical bore, kNO 2045 cage and lubrication available.

Bore: Cylindrical
Cage: KNO 2045
Lubrication: Yes
Weight: 0.05 Kg

Availability: Sourced to Order
Standard Dispatch:7–9 Business Days
Get a Quote for Exact Pricing & Lead Time

Get A Quote

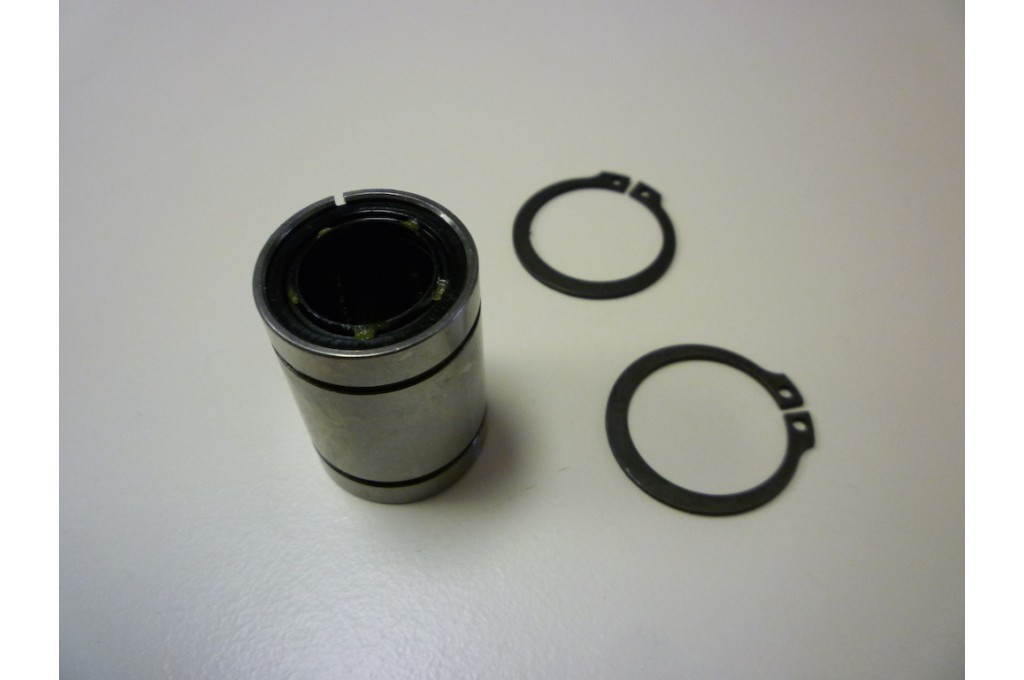

INA - KNO20-B | Linear Ball Bearing Bushes & Shaft Guides | 20 × 32 × 45 mm product image

Details

INA KNO20-B is a LINEAR BALL BEARING BUSHES & SHAFT GUIDES with inner diameter 20 mm, outer diameter 32 mm and width 45 mm. Additional specifications include bore type CYLINDRICAL, cage KNO 2045 and lubrication YES.

This record lists INA KNO20-B as part of the Linear Ball Bearing Bushes & Shaft Guides range under Linear Bearings. The product record shows size 20 × 32 × 45 mm, cylindrical bore, kNO 2045 cage, lubrication available and weight 0.05 kg. Compare this record with applications such as sealed bearing assemblies, shaft positions and repair jobs involving abrasive dust or debris, focusing on inside diameter, outside diameter and width. Final suitability should be checked from the machine drawing or existing component. Catalogue note: Open INA Linear ball bearings with lip seals on both sides - metric size.

Specifications

Product serial no.	15820
Inner Diameter	20 mm
Outer Diameter	32 mm
Width	45 mm
Weight	0.05 kg
Cage	Kno 2045
Seal	No seal
Bore	Cylindrical
Lubrication	Yes
Category	Linear bearings
