INA - KBO50-PP-AS | Linear Ball Bearing Bushes & Shaft Guides | 50 × 75 × 100 mm

INA KBO50-PP-AS appears in the Linear Ball Bearing Bushes & Shaft Guides range under Linear Bearings and is referenced by serial 15885. The wide-section width is listed as 50 × 75 × 100 mm. It is relevant for maintenance replacement where bearing contamination control is required.

Bore: Cylindrical
Seal: 2l - Ls-seal At Both Sides
Lubrication: Yes
Weight: 0.85 Kg

Availability: Sourced to Order
Standard Dispatch:7–9 Business Days
Get a Quote for Exact Pricing & Lead Time

Get A Quote

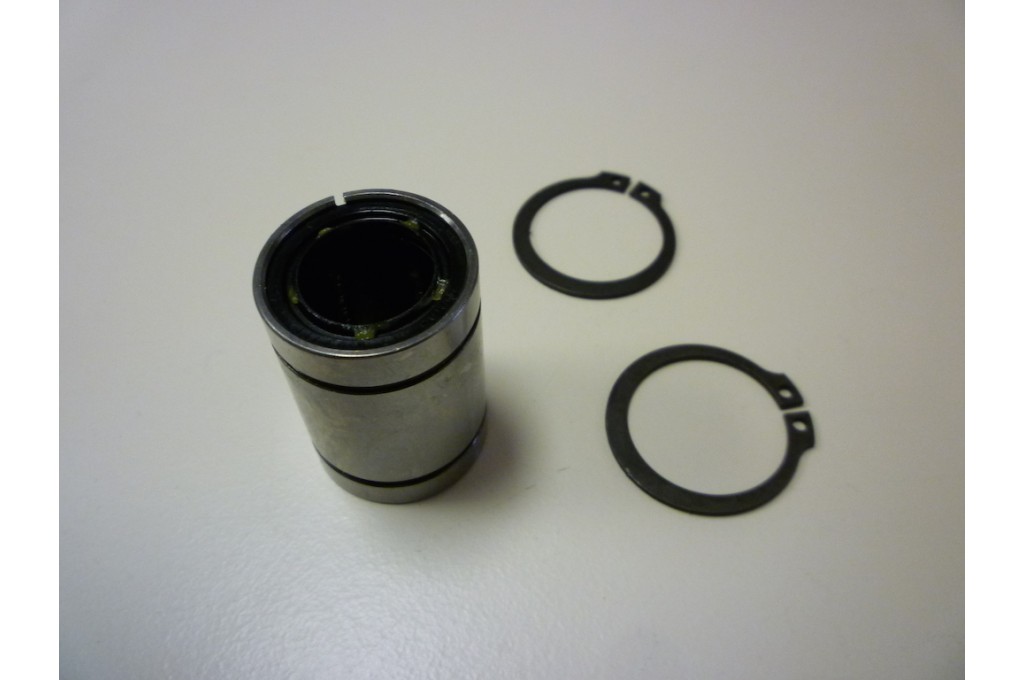

INA - KBO50-PP-AS | Linear Ball Bearing Bushes & Shaft Guides | 50 × 75 × 100 mm product image

Details

INA KBO50-PP-AS is a LINEAR BALL BEARING BUSHES & SHAFT GUIDES with inner diameter 50 mm, outer diameter 75 mm and width 100 mm. Additional specifications include bore type CYLINDRICAL, seal 2l - ls-seal at both sides and lubrication YES.

INA KBO50-PP-AS is listed in the Linear Ball Bearing Bushes & Shaft Guides range under Linear Bearings with VW Impex product serial 15885. Recorded specification details include size 50 × 75 × 100 mm, cylindrical bore, 2L - LS-seal at Both Sides, lubrication available and weight 0.85 kg. This bearing seal or retaining component supports contamination control, lubricant retention or bearing-position sealing and is normally reviewed for bearing sealing positions, dust exclusion and lubricant-retention work. Before ordering, confirm inside diameter, outside diameter and width against the equipment manual, existing part marking or technical drawing. Catalogue note: sealed on all sides, with relubrication facility.

Specifications

Product serial no.	15885
Inner Diameter	50 mm
Outer Diameter	75 mm
Width	100 mm
Weight	0.85 kg
Seal	2l - ls-seal at both sides
Bore	Cylindrical
Lubrication	Yes
Category	Linear bearings
