BOSTON - 724B-60-G | Helical gearbox

BOSTON 724B-60-G is catalogued as a mounted bearing or housing unit in the Helical Gearbox range under Gearbox. Review shaft size, bolt pattern and housing style before replacement.

Lubrication: Yes
Weight: 19 Kg

Availability: Sourced to Order
Standard Dispatch:7–9 Business Days
Get a Quote for Exact Pricing & Lead Time

Get A Quote

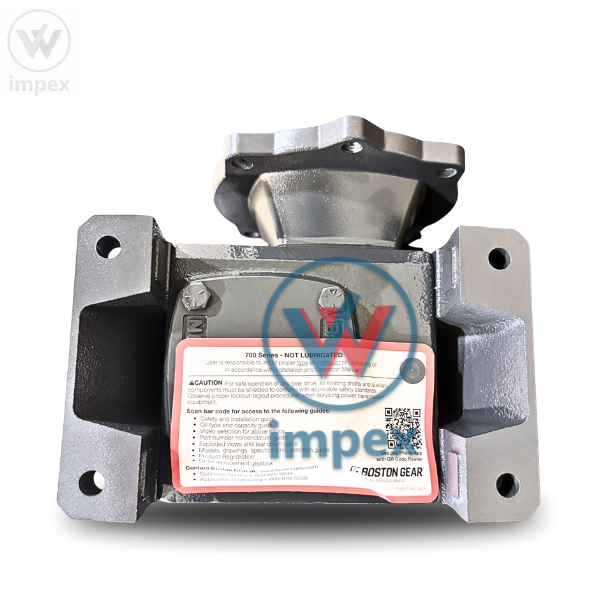

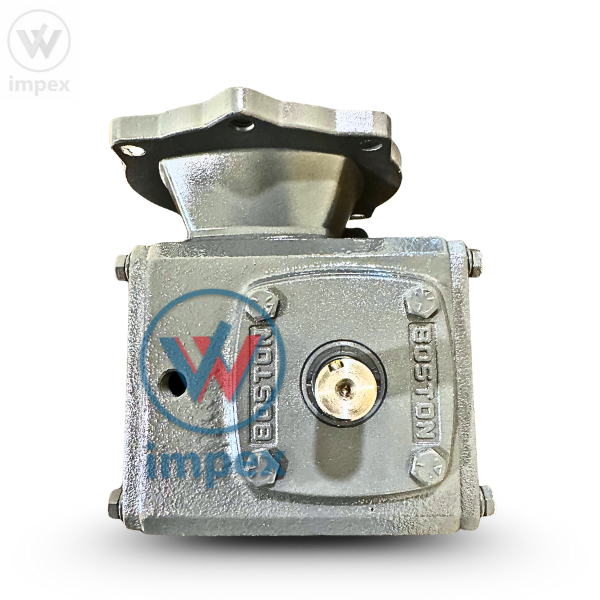

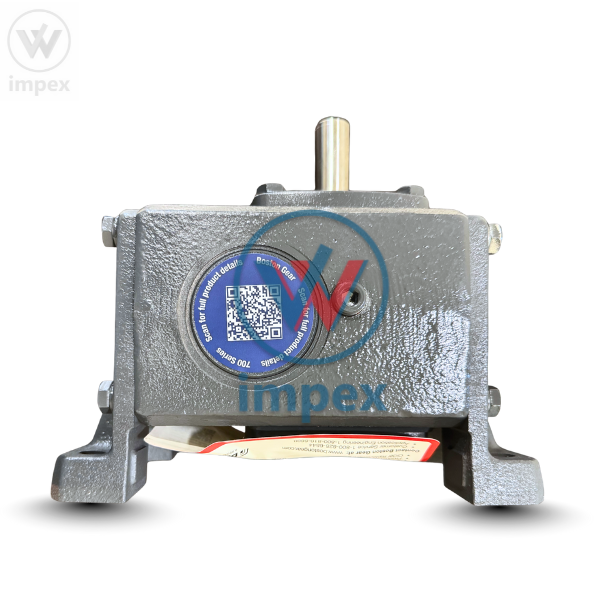

BOSTON - 724B-60-G | Helical gearbox product image

Details

BOSTON 724B-60-G is listed under helical gearbox. Additional specifications include lubrication yes.

This record lists BOSTON 724B-60-G as part of the Helical Gearbox range under Gearbox. The product record shows lubrication available and weight 19 kg. Compare this record with applications such as maintenance replacement of pillow-block, flange and take-up style bearing locations, focusing on shaft size, bolt pattern and housing style. Final suitability should be checked from the machine drawing or existing component. Catalogue note: SPECIFICATIONS Reduction Single Center Distance 2.3800 in Ratio 60:1 Maximum Input Horsepower 0.730 hp @ 1750 rpm Input Type Solid Shaft Input Size 0.7500 in - 3/4 in Output Type Solid Shaft Output Size 1.1250 in - 1-1/8 in Output Direction Left Hand Maximum Output RPM 29.200 @ 1750 rpm input Maximum Output Torque 1330 in-lbs @ 100 rpm Housing Material Cast Iron.
